OCI — Deploying the Linux PAM Module [Part 4]

This guide covers deploying the Linux PAM module on OCI endpoints, enabling SSH authentication against OCI Identity Domains.

1. Download PAM Module from OCI

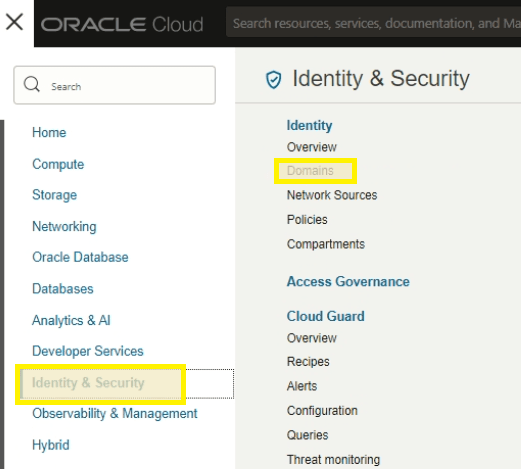

Navigate to Identity & Security > Domains > Settings > Downloads in the OCI console.

2. Install the PAM Module

Extract the downloaded zip and copy the RPM files to the target server:

# Copy RPMs to /tmp on the target server
scp pam_oracle_cloud.rpm authn_oracle_cloud.rpm user@server:/tmp/

Install dependencies:

yum install json-c curl -y

Install the PAM RPMs:

yum install /tmp/pam_oracle_cloud.rpm /tmp/authn_oracle_cloud.rpm -y

3. Create the Wallet

The wallet stores the Client Secret for the PAM Confidential Application created in Part 3. Use the walletMgr utility to create it — it will prompt you for the Client Secret interactively:

/opt/oracle/pam_cloud/bin/walletMgr create

4. Install and Configure SSSD

Install SSSD:

yum install sssd -y

Configure /etc/sssd/sssd.conf:

[sssd]
domains = LOCAL, IDCS
services = nss, pam
config_file_version = 2

[nss]
filter_groups = root
filter_users = root

[pam]

[domain/LOCAL]
id_provider = files

[domain/IDCS]
id_provider = proxy
proxy_lib_name = sssd_proxy_oracle_cloud
auth_provider = proxy
proxy_pam_target = sssd_proxy_oracle_cloud
enumerate = true
cache_credentials = true

SSSD requires strict permissions on its config file:

chmod 600 /etc/sssd/sssd.conf

5. Configure PAM for SSSD Proxy

Create /etc/pam.d/sssd_proxy_oracle_cloud:

auth     required pam_oracle_cloud.so
account  required pam_permit.so

6. Configure SSH PAM

Edit /etc/pam.d/sshd and add the following line near the top:

auth sufficient pam_oracle_cloud.so

7. Enable Challenge-Response Authentication

Edit /etc/ssh/sshd_config and set:

ChallengeResponseAuthentication yes

Note: In OpenSSH 8.7+ (Oracle Linux 9+), this directive was renamed to KbdInteractiveAuthentication. Use whichever matches your version.

8. Configure OPC

Edit /etc/opc.conf with the details from the Linux PAM Confidential Application created in Part 3:

[General]
TenantName = idcs-<ID>
ClientID = <Client ID from Part 3 PAM Confidential Application>
WalletDir = /opt/oracle/pam_cloud/wallet
IdcsUrl = https://idcs-<ID>.identity.oraclecloud.com
LogLevel = DEBUG
LogFile = /var/log/opc.log

[SSSD]
EnumerateUsers = true
EnumerateGroups = true
DefaultShell = /bin/bash
DefaultHomeDir = /home/%u

9. Restart Services

Enable SSSD auth and restart all related services:

authconfig --enablesssd --enablesssdauth --enablemkhomedir --updateall
systemctl restart sssd
systemctl restart sshd

Note: authconfig is deprecated on RHEL/Oracle Linux 8+. On newer systems, use authselect instead:

authselect select sssd with-mkhomedir --force

10. Test

Verify the user can be resolved:

id username

If everything is configured correctly, you should see the UID, GID, and group memberships pulled from OCI Identity Domains.
